AJS BILSTON 125

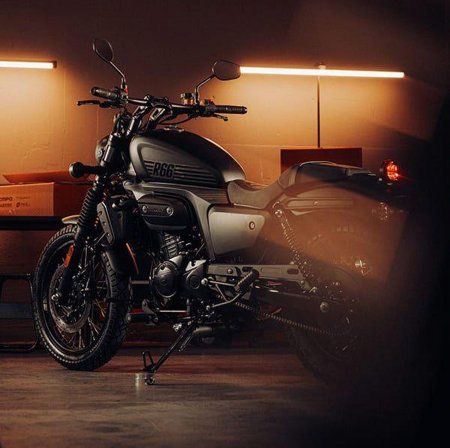

THE ALL NEW 2025 AJS BILSTON
The Bilston will be available in 3 eye-catching colours; Foundry Black, Ember Red and Steel Blue, all with gold detailing and AJS logo on the tank.
Starter: electric and kick-five speed, chain drive, 4 stroke engine, Excellent fuel economy.

Smooth and comfortable commute on the Bilston thanks to its balance shaft, over-head cam engine, and ergonomically designed sculptured seat. It’s lightweight at 132kg and easy to handle, allowing you to zip through traffic or take the long route without fatigue.


Max Speed: (approx.): 60mph
Electric and kick start
Odometer: km , Speedometer: Dual marked
Mass in running order: 132kg
17 Year old learner legal
LED lights all round
Gold O-Ring chain

Technical Details (Euro 5)
Engine type: 4-stroke, OHC, air cooled, single cylinder
Displacement: 124cm³ Bore x Stroke: 56.5mm x 49.6mm
Max. power: 8.5Kw @ 9000 rpm
Fuel system: Electronic Fuel Injection
Fuel tank capacity: 19L, Unleaded or E5 petrol
Fuel consumption: (as recorded on the COC) 128mpg

Wheels: Front: 90/90-17Rear: 130/80-17
Seat height: 780mm
Length: 2050mm
Width: 785mm
Height: 1080mm
Wheelbase: 1340mm
